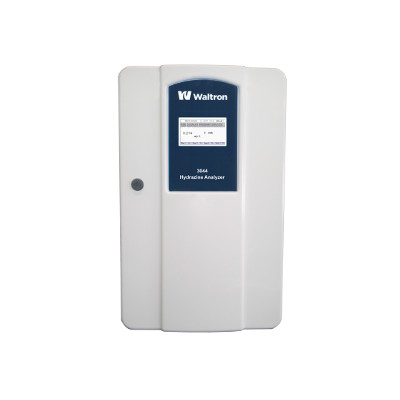

3044 Hydrazine Analyzer

Range: 0 – 100ppb

Range: 0 – 500ppb


The Waltron 3044 Hydrazine Analyzer is the first choice for colorimetric online analysis of hydrazine in ultrapure water applications. The 3044 is trusted worldwide to deliver accurate and reliable readings with minimal maintenance and low total cost of ownership. An enhanced color touchscreen user interface makes the 3044 easy to operate and configure, and the clever fast-loop reservoir feature allows accurate measurement independent of flow. Common application points in a boiler system for online hydrazine measurement include: deaerator, condensate system, and boiler feedwater.

Accurate and wide-range analysis


Multi-stream available


Fast loop reservoir


Adjustable cycle and calibration frequency


Automatic calibration and validation (QA/QC)


Compact design


Color touchscreen display


Grab sample capability


Internal datalogger


Low reagent level alarm


No compressed air required


Automatic start/stop based on sample flow detection


Minimal analyzer maintenance


Panel mounting bracket available for Hach 5000 replacement

PERFORMANCE

Range

0 – 100ppb, 0 – 500ppb


Accuracy

+/– 2% of reading


Reproducibility

+/– 2% of reading


Sampling Frequency (Cycle Time)

One reading every 20 mins, adjustable


Required Maintenance

Every 2 weeks replenish reagents; Quarterly replace tubing


Reagent Consumption (approximate)

1 reagent, 4L per month


Sensor Classification

Colorimetric with glass flowcell and LED source


Application

10-45°C analyzer (50-113°F)


Ambient Temperature Range

10-45°C analyzer (50-113°F)


Atmospheric Pressure Range

No Limits


Humidity

Up to 90% not condensable


Unit Dimensions

Height=23.6”(60 cm), Width=15”(38 cm), Depth=8.3”(21 cm)


Positioning and Installation Details

Wall mounting, bench supported, or panel mounting (optional)


Weight

17 kg (37.5 lbs.


Degree of Protection

IP55 (NEMA 4): Wet section, IP65 (NEMA 4x): Electronics


Alarms

2 or 4 configurable alarm relays (Result, loss of sample, fault)


Power Supply (on request)

110-220Vac, 50-60 Hz 80 VA


Certification (on request)

Meets low voltage and low electromagnetic compatibility di

SAMPLE DELIVERY OPERATING CONDITIONS

Temperature Range

5-55º C (41-131º F)


Inlet Sample

100–500 ml/min, atmospheric, flexible tubing O.D. 1/4″(6mm)


Outlet Sample

Atmospheric, waste tubing O.D. 3/8″(9mm)


PH

3-12


Sample Conditioning Requirements

Filtering between 10 and 60 micron, depending on the matrix, needed only to avoid clogging.


Materials in Contact with Sample

Glass, Silicone, Plexiglass, Stainless Steel AISI 316

SIGNAL OUTPUTS

Analog Outputs

4-20mA (galvanic isolator module available as option) or 0-5V)


Serial I/O for Signals

OPERATIONAL CALIBRATION

Single/Multi Point

Multi-Point: zero and mid range


Matrix Corrections

Yes, sample blank correction


Manual/Automatic

Both
