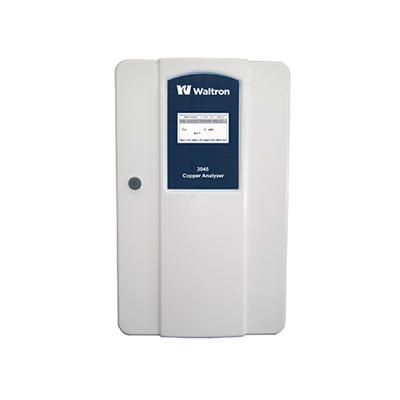

3045 Copper Analyzer

Range: 0–1000ppb

Range: 0–3000ppb


The Waltron 3045 Dissolved Copper Analyzer is the most reliable instrument available on the market for online colorimetric measurement of dissolved copper in clean water applications. Online dissolved copper analysis is a growing in importance as an effective method to monitor corrosion within specialty steam and boiler water systems. An enhanced color touchscreen user interface makes the 3045 easy to operate and configure, and the clever fast-loop reservoir feature allows accurate measurement independent of flow. The 3045 stands alone as capable of delivering the most accurate and precise results for ultra-pure water applications.



 Accurate and wide-range analysis


 Multi-stream available


 Fast loop reservoir


 Adjustable cycle and calibration frequency


 Automatic calibration and validation (QA/QC)


 Compact design


 Color touchscreen display


 Grab sample capability


 Internal datalogger


 Low reagent level alarm


 Automatic start/stop based on sample flow detection


 Minimal analyzer maintenance

PERFORMANCE

Range

0–1000ppb, 0–3000ppb


Accuracy

+/– 2% of full scale


Reproducibility

+/– 2% of reading


Analysis Time

7min, batch process


Sampling Frequency (Cycle Time)

One reading every 15 mins, adjustable


Sensor Classification

Colorimetric with glass flowcell and LED source


Power Supply

110-220Vac, 50-60 Hz 80 VA


Humidity

Up to 90% not condensable


Ambient Temperature Range

10-45°C analyzer (50-113°F)


Positioning and Installation Details

Wall mounting, bench supported, or panel mounting (optional)


Alarms

2 or 4 configurable alarm relays


Degree of Protection

IP55 (NEMA 4): Wet section, IP65 (NEMA 4x): Electronics


Required Maintenance

Once a month replenish reagents, Quarterly replace tubing


Reagent Consumption (approximate)

3 reagents, 2L each per month


Materials in Contact with Sample

Glass, Silicone, Plexiglass, Stainless Steel AISI 316


Certification (on request):

Meets low voltage and low electromagnetic compatibility directives


Sample Conditioning Requirements

Filtering between 10 and 60 micron, depending on the matrix, needed only to avoid clogging.


Weight

17 kg (37.5 lbs.)

SAMPLE DELIVERY OPERATING CONDITIONS

Temperature Range

5-55º C (41-131º F)


Inlet Sample

100–500 ml/min, atmospheric, flexible tubing O.D. 1/4″ (6 mm)


Outlet Sample

Atmospheric, waste tubing O.D. 3/8 (9 mm)


PH

3-12

SIGNAL OUTPUTS

Analog Outputs

4-20mA (galvanic isolator module available as option) or 0-5V


Serial I/O for Signals

RS232, RS485; MODBUS; PROFIBUS

OPERATIONAL CALIBRATION

Frequency/Intervals

Recommended: 7 days


Single/Multi Point

Multi-Point: zero and mid range


Matrix Corrections

Yes, sample blank correction


Manual/Automatic

Both
