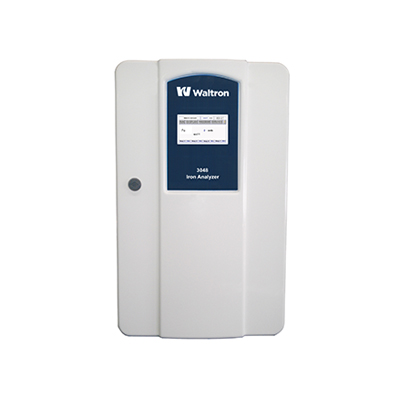

3048 Iron Analyzer

Range: 0 – 5ppm*

Range: 0 – 100ppb


The Waltron 3048 Dissolved Iron Analyzer is the first choice for colorimetric online analysis of dissolved iron in clean water applications. Online dissolved iron analysis is a growing in importance as an effective method to monitor corrosion within steam and boiler water systems. An enhanced color touchscreen user interface makes the 3048 easy to operate and configure, and the clever fast-loop reservoir feature allows accurate measurement independent of flow. The 3048 automates manual bench test analysis for accurate and reliable results, greatly enhanced visibility on changes in iron concentrations, and earlier detection of potential problems.

 Accurate and wide-range analysis


 Multi-stream available


 Fast loop reservoir


 Adjustable cycle and calibration frequency


 Automatic calibration and validation (QA/QC)


 Compact design


 Color touchscreen display


 Grab sample capability


 Internal datalogger


 Low reagent level alarm


 Automatic start/stop based on sample flow detection


 Minimal analyzer maintenance

PERFORMANCE

Range

0 – 100ppb, 0 – 5ppm


Accuracy

+/– 2% of full scale


Reproducibility

+/– 2% of reading


Analysis Time

7.5 minutes


Sampling Frequency (Cycle Time)

One reading every 20 minutes (adjustable)


Required Maintenance

Once a month replenish reagents, Quarterly replace tubing


Reagent Consumption (approximate)

1 reagent, 1L per month


Sensor Classification

Colorimetric with glass flowcell and LED source

Application

Boiler water and cooling water


Ambient Temperature Range

10-45ºC analyzer (50-113ºF)


Atmospheric Pressure Range

No Limits


Humidity

Up to 90% not condensable


Unit Dimensions

Height=23.6”(60 cm), Width=15”(38 cm), Depth=8.3”(21 cm)


Positioning and installation details

Wall mounting or with bench support, panel mounting (optional)


Weight

17 kg (37.5 lbs.)


Degree of Protection

IP55 (NEMA 4): Wet section, IP65 (NEMA 4x): Electronics


Alarms

2 or 4 configurable alarm relays


Power Supply

110-220Vac, 50-60 Hz 80 VA


CE Certification (on request)

Meets low voltage and low electromagnetic compatibility directives

SAMPLE DELIVERY OPERATING CONDITIONS

Temperature Range

5-55º C (41-131º F)


Inlet Sample

100–500 ml/min, atmospheric, flexible tubing O.D. 1/4”(6 mm)


Outlet Sample

Atmospheric, waste tubing O.D. 3/8”(9 mm)


PH

3-12


Sample Conditioning Requirements

Filtering between 10 and 60 micron, depending on the matrix, needed only
to avoid clogging


Materials in Contact with Sample

Glass, Silicone, Plexiglass, Stainless Steel AISI 316

SIGNAL OUTPUTS

Analog Outputs

4-20mA (galvanic isolator module available as option) or 0-5V


Serial I/O Options

OPERATIONAL CALIBRATION

Single/Multi Point

Multi-Point: zero and mid range


Matrix Corrections

Yes, sample blank correction


Manual/Automatic

Both
